1W 2.5W COFDM Digital Video Transmitter For BVLOS Video Transmission With Low Latency

  • 1
  • 2

Brand Name : Hincn

Model Number : HCT820+HCR800

Place of Origin : China

MOQ : 1 set

Price : US$1,049~US$1,998.00

Payment Terms : ,T/T,Western Union,MoneyGram,D/P,D/A,L/C

Supply Ability : 1,889pcs/month

Delivery Time : 7~14 working days

Packaging Details : carton package

Wireless modulation : COFDM

RF power : 1W(30dBm) or 2.5W(34dBm)

Frequency range : 300MHz~860MHz available

Encryption : AES256

Weight : <140g

OEM& ODM : Support

Encode : H265/H264

Bandwidth : 1MHz~8MHz adjustable (1KHz step)

Contact Now

1W 2.5W COFDM Digital Video Transmitter For BVLOS Video Transmission With Low Latency
Product Overview

This COFDM digital video transmitter is critical for BVLOS (Beyond Visual Line of Sight) UAV drone wireless video transmission. Latency is as low as 50ms, making it ideal for real-time aerial video applications.

Key Features
  • COFDM modulation technology with multipath resistance and robustness
  • Low latency H265/H264 video encoding supporting up to 1080P/I @60fps
  • Data is protected with AES256 encryption
  • Supports high-speed mobile transmission up to 800km/h
  • Low latency 50ms~130ms
  • Strong anti-jamming performance
Technical Specifications
Interface
HD video input Standard HDMI interface
SD video input 4PIN 1.5mm spacing connector
One-way transparent data transmission serial port 3PIN 1.5mm spacing connector, default to be TTL3.3V level, standard RS232 level can also be specified before shipment
Configure serial port 4PIN 1.5mm spacing connector, TTL3.3V. It can be connected to our parameter panel, and can also be connected to a PC or other host computer
Power input XT30PW-M connector
Antenna port SMA
COFDM Modulation Mode
Modulation COFDM
IFFT mode 2K
Wireless bandwidth 1MHz~8MHz adjustable, 1KHz step forward
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM
Wireless stream 0.5Mbps to 31.67Mbps
Frequency 300~360MHz; 350~400MHz; 450~500MHz; 520~560MHz; 580~620MHz; 680~720MHz; 820~860MHz. Other frequencies between 300~860MHz can be customized. Center operating frequency can be configurable, with a step of 1KHz
Power 1W(30dBm) or 2.5W(34dBm)
Audio and Video Processing
Support video input Default single-channel video input: HD or SD. Video input is automatically detected after power on. If connected at the same time, it defaults to the preferred HDMI input, and can also be changed to the preferred AV input. Optional dual video input simultaneous encoding and transmission
Supported video formats 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL)
Video encoding H265/H264
Audio input HDMI embedded audio or analog audio
Audio format AAC, 16bit, stereo, 32Kbps
Encryption AES256
Size 104.5*50*27mm (Excludes protruding connectors)
Weight Less than 140g
Power and Power Consumption DC 12V power supply (11~13V). Power consumption for 1W transmit power is less than 15W, and power consumption for 2.5W transmit power is less than 23W

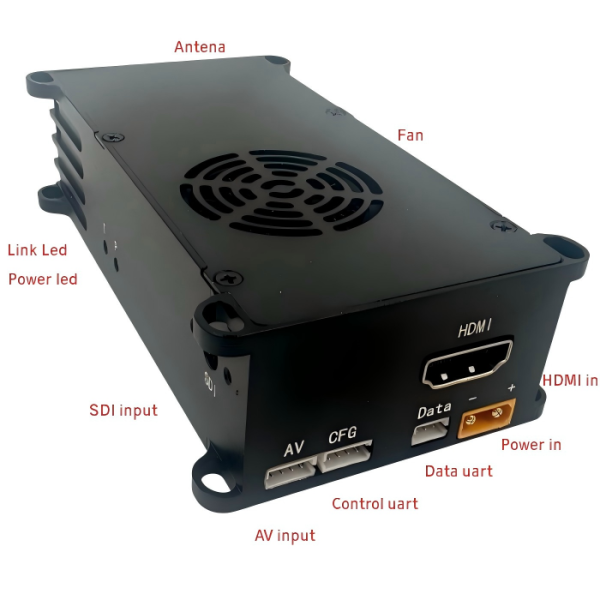

Product Interface Diagram
1W 2.5W COFDM Digital Video Transmitter For BVLOS Video Transmission With Low Latency
Paired COFDM Video Receiver
1W 2.5W COFDM Digital Video Transmitter For BVLOS Video Transmission With Low Latency
About Hincn Limited

Hincn Limited is a Hong Kong company specializing in HD video wireless transmission solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015.

We have a total of 9 employees, including 3 programmers and 2 engineers. Our company maintains long-term cooperative relationships with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
