Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking
This drone uav video transmitter was designed for video data wireless transmission with two way wireless data link. This OFDM radio device works at 600MHz and 1.4GHz bands, uses frequency hopping spread spectrum (FHSS) technology to ensure better stability of signal transmission.
Key Features
- TDD OFDM two way wireless transceiver for video data Link
- Up to 100Mbps Iperf Throughput
- Networking type communication: point-to-point and point-to-multipoint Star Networking or IP Mesh networking
- Web UI or Serial uart for management
- 2 Ethernet ports, 2 channels uart data port, Sbus in and Sbus out port for UAV data link
Technical Specifications
| Attribute |
Value |
| Product name |
Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking |
| Modulation |
TDD OFDM |
| Frequency |
566~678MHz, 1420~1530MHz |
| FHSS |
Support |
| Bandwidths |
3MHz, 5MHz,10MHz, 20MHz, 40MHz |
| Throughput |
Maximum 100Mbps throughput |
| RF Transmission Power |
300mW*2 |
| Constellation |
QPSK,16QAM,64QAM self adaption |
| Sensitivity |
-102dBm(1Mbps@20MHz) |
| Ethernet ports |
2 * Ethernet ports for IP data transmission |
| Serial ports |
2 channels TTL 3.3V uart as default, RS232 optional for serial data transmission |
| Sbus ports |
Sbus-in and Sbus-out ports for Sbus signal transmission |
| Transmission Range |
1~2km( ground to ground transmission), 5~20km (UAV to Ground) |
| Management |
Web UI and Control Uart |
| Encryption |
AES128 |
| Networking Mode |
Point to Point, Point to Multipoint, Relay, Mesh |
| Movement Speed |
Support no less than 240km/h |
| Power Input |
12~18V |
| Power Consumption |
<7W |
| Dimensions |
83.7*61.4*20.2mm |
| Weight |
106g |
Input/Output Connections
| Port |
Description |
| Ethernet*2 |
2 channel 4Pin GH1.25mm lockable connector, bridged inside with same IP address |
| Uart1 |
TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement. |
| Uart2 |
TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement. It can be set as control uart via web UI. |
| Sbus |
3Pin GH1.25mm lockable connector. Sbus-in and Sbus-out. |
| Power in |
XT30PW-M connector |
| ANT 1 |
Tx/Rx Antenna port, SMA female |
| ANT 2 |
Tx/Rx Antenna port, SMA female |

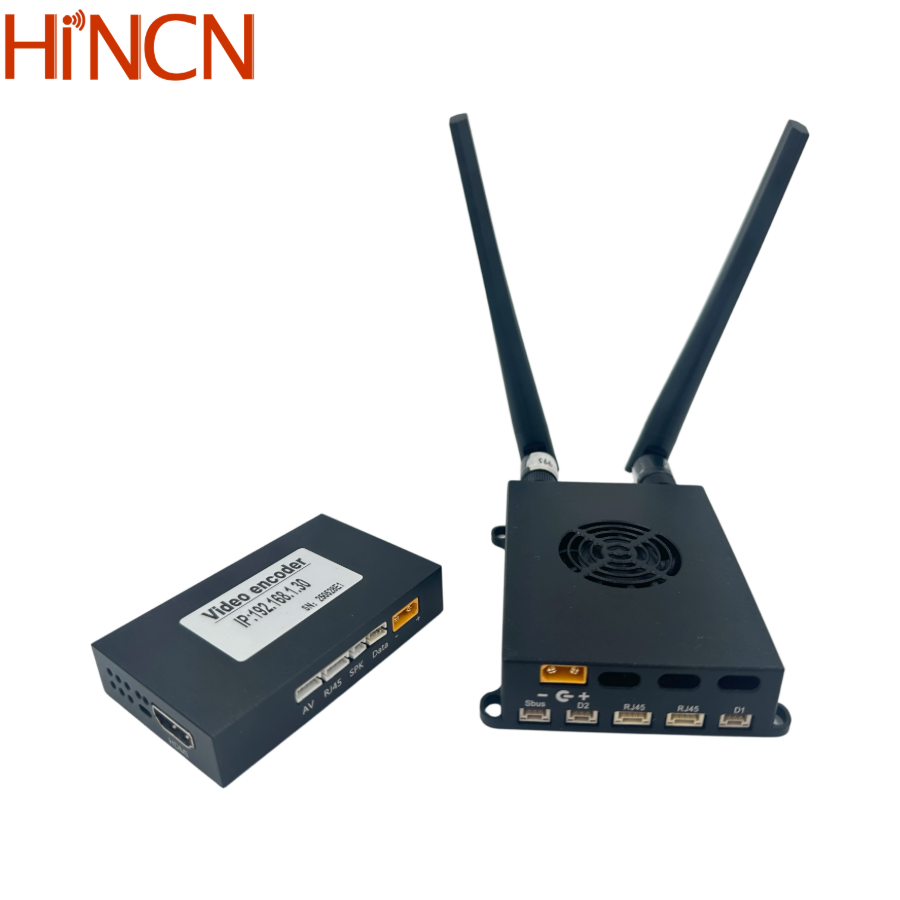

Appearance of the UAV Video Transmitter
Wireless Networking with HCL611
HCL511 drone uav video transmitter supports 2 operating modes: Access Node or Central Node. It can be managed through web UI and supports up to 64 Access Nodes connected to a Central Node. All nodes share the entire transmission bandwidth (maximum 100 Mbps throughput).
The data from the central node to the access node is referred to as downlink, while the data from the access node to the central node is called uplink. The ratio of uplink and downlink data streams can be controlled through the Web UI.
Frequently Asked Questions
Q1. It seems to support IP camera, but I want HDMI or SDI video input?
A: The default video input is IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD or AV output, we recommend using our mini encoder device to encode the video/audio signal into digital data for transmission.
At the receiver end, you can connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back into HDMI video and audio signals.
